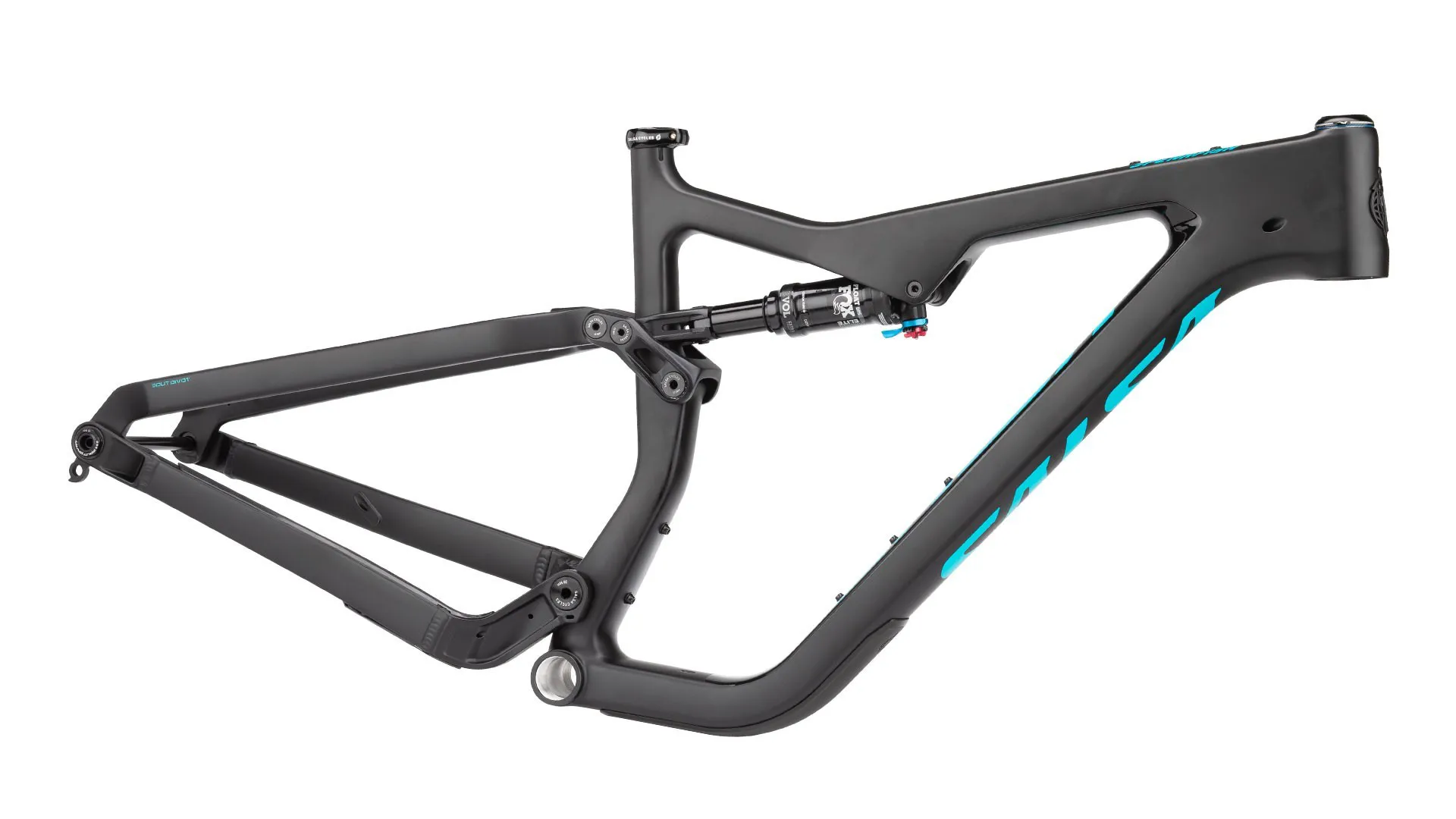

Salsa Spearfish Frame

Season:Current

Brand:Salsa Cycles

Code:FM664

The Spearfish was designed under a simple premise: that efficiency and precision result in speed. Whether pursuing an ultra-endurance record or working to keep the hard chargers off your back on local training laps, Spearfish's efficient Split Pivot® suspension design rewards the rider. The lightweight carbon frame and 100 mm Fox Float DPS Performance Elite shock provide a platform for the ultimate progressive XC bike. Eliminate excuses with Spearfish.

Tire Size Range* for 622/29" Wheels56-66mm (2.2-2.6")
Tire Size Range* 584/27.5" Wheels70-76mm (2.8-3.0")
Tire Size Range* 559/26"Not Compatible
Maximum Wheel/Tire Diameter**Ø754mm (29.7")
Minimum Wheel/Tire Diameter***Ø728mm (28.5")
Suspension Fork Length (Travel)521-541mm (110-130mm)
Fork Offset42-51mm
Rear Shock Size190 x 45mm
Shock Mount, ForeCarbon: 08x40mm, Aluminum: 08x30mm
Shock Mount, AftØ8 x 12.5mm (included)
Pivot Kit(s)Refer to Suspension Frame Service Instructions
Bearings17287 (qty 4), 6800 (qty 4) 6801 (qty 2)
Headset, UpperIS41
Headset, LowerIS52
SeatpostØ30.9mm
Seat CollarCarbon: 35.4mm, Aluminum: 35.0mm
Dropper Compatible (Routing)Yes, internal/stealth
Bottom Bracket73mm BSA
Crankset (Max Ring)Super Boost 157 55-57mm chainline only 1x: 32t max
Rear Brake (Rotor)74mm post (Ø160-180mm)
Rear Spacing157 x 12mm thru-axle
Rear Axle SizeØ12 x 197mm, TP = 1.75, TL = 20
Derailleur HangerFS2322
F/T Bottle Mounts2
Accessory MountsTop tube bag mounts

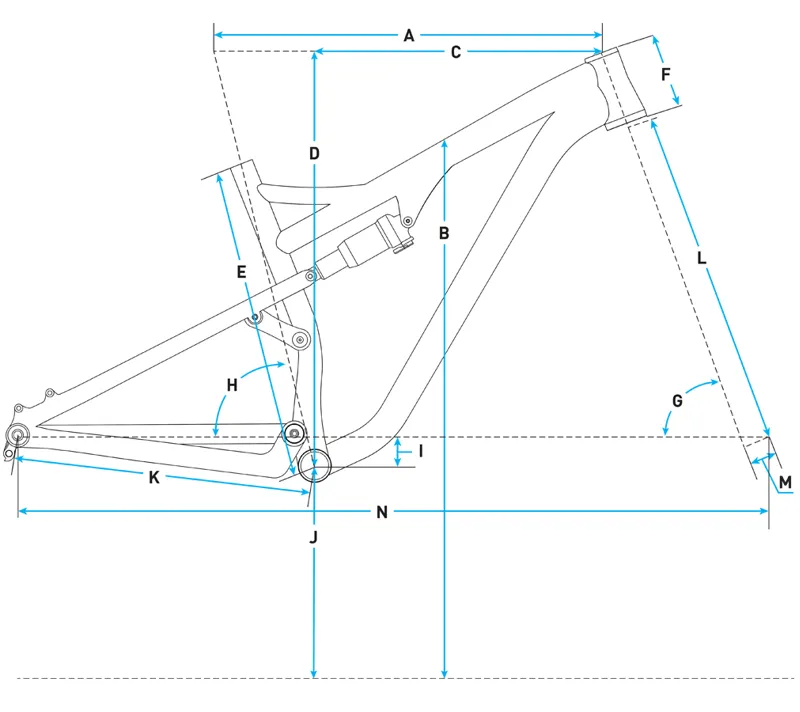

Sizing Information


SizeSM - 120mm ForkMD - 120mm ForkLG - 120mm ForkXL- 120mm ForkSM - 110mm ForkMD - 110mm ForkLG - 110mm ForkXL - 110mm Fork
A. Effective Top Tube593 / 592615 / 614636 / 635658 / 657592 / 591614 / 613635 / 634657 / 656
B. Stand Over733 / 736744 / 747755 / 758765 / 768730 / 732740 / 742751 / 754761 / 764
C. Reach423 / 425442 / 444461 / 463480 / 482428 / 430446 / 449465 / 468484 / 487
D. Stack608 / 606617 / 615626 / 624635 / 633604 / 603613 / 612622 / 621632 / 630
E. Total Seat Tube Length419444483520419444483520
F. Headtube Length103113123133103113123133
G. Headtube Angle67.8 / 68.067.8 / 68.067.8 / 68.067.8 / 68.068.3 / 68.568.3 / 68.568.3 / 68.568.3
H. Seat Tube Angle74.3 / 74.574.3 / 74.574.3 / 74.574.3 / 74.574.8 / 75.074.8 / 75.074.8 / 75.074.8
I. BB Drop39 / 3639 / 3639 / 3639 / 3643 / 4043 / 4043 / 4043 / 40
K. Chainstay Length433 / 432433 / 432433 / 432433 / 432433 / 432433 / 432433 / 432433 / 432
L. Fork Length Axle to Crown531531531531521521521521
M. Fork Offset5151515151515151
N. Wheelbase11401163118612091137116011821205
Crank Arm Length170170175175170170175175
Handlebar Width760mm800mm800mm800mm760mm800mm800mm800mm
Recommended Rider Height165cm–173cm173cm–180cm180cm–188cm188cm–UP165cm–173cm173cm–180cm180cm–188cm188cm–UP
Stem Length5050505050505050

Measurements based on:

  • An unsprung bike (no sag)
  • An average 120mm 29/27.5+ suspension fork at 25% sag
  • Aa 29 x 2.35" tire measuring 744mm in diameter
  • Standover is measured from vertically from ground to bend in top tube, subtract 2-8mm (0.1-0.3") for 27.5 x 2.8-3.0 tires
  • Measurements shown are for LOW / HIGH Flip Chip settings
